Product Description
2/2-way normally closed, direct acting solenoid valve with diaphragm operating type.
1. General Description
CE(F) series solenoid valves are a kind of automatic control device used in various industrial processes. They open and close automatically according to electric-controlled signals in the control of liquid media, air and gas.
2. Features
- Wide applications, suitable for various kinds of gases and liquids.
- State-of Arts design and compact construction.
- Reliable service and high sensitivity. The solenoid valves can work normally even when the working differential pressure is close to zero.
3. Specifications
Medium:
Air, Gas, Water, Oil
Working Pressure:
0 to 0.8 Mpa or 0.002-1.6Mpa
Valve body:

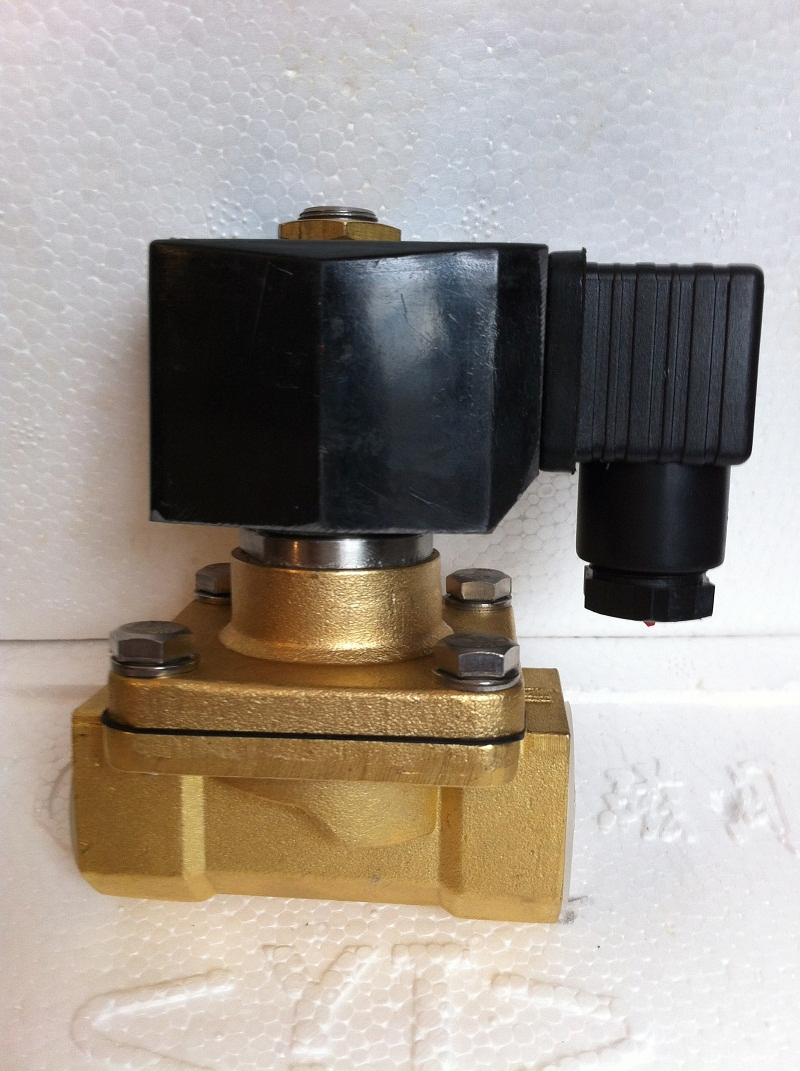

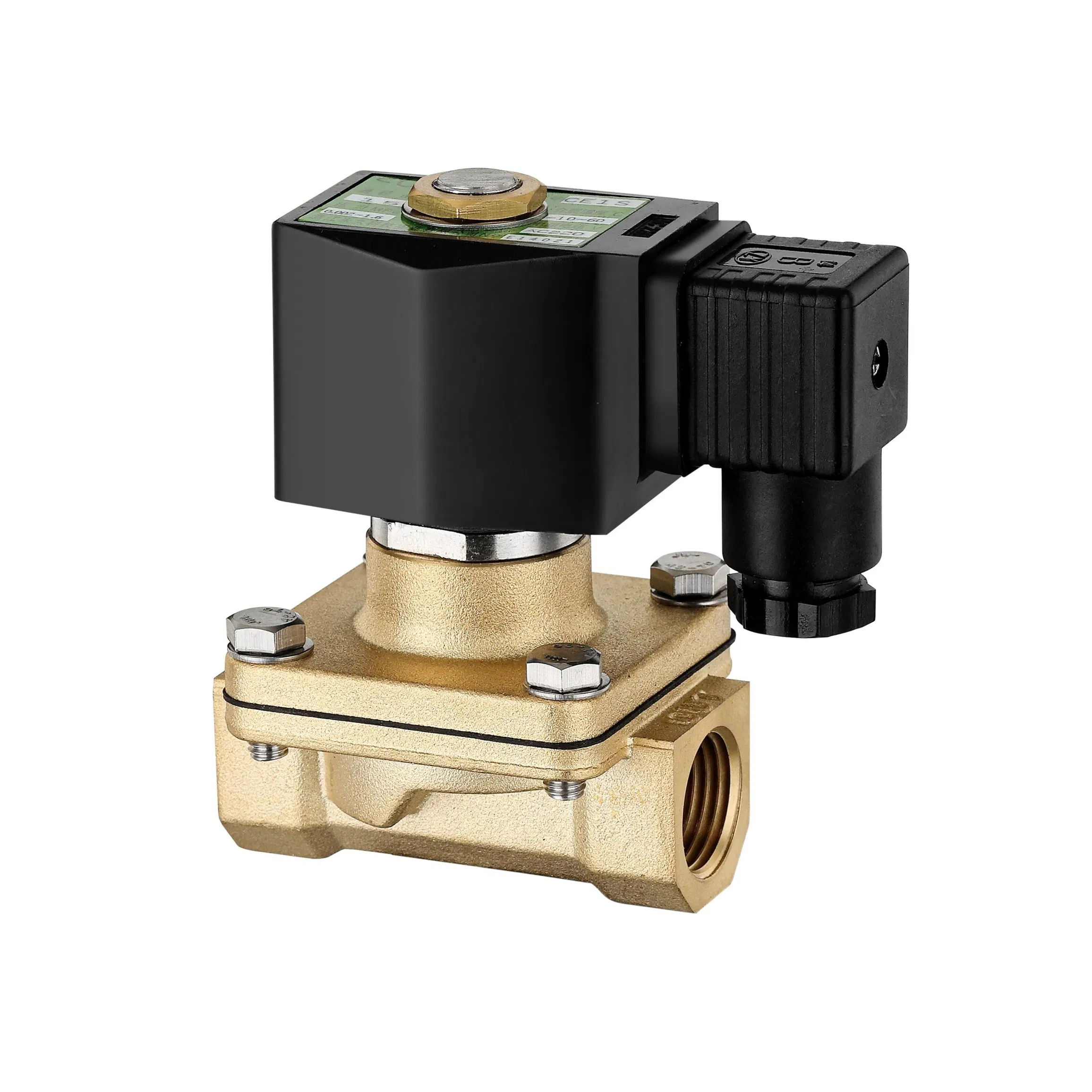

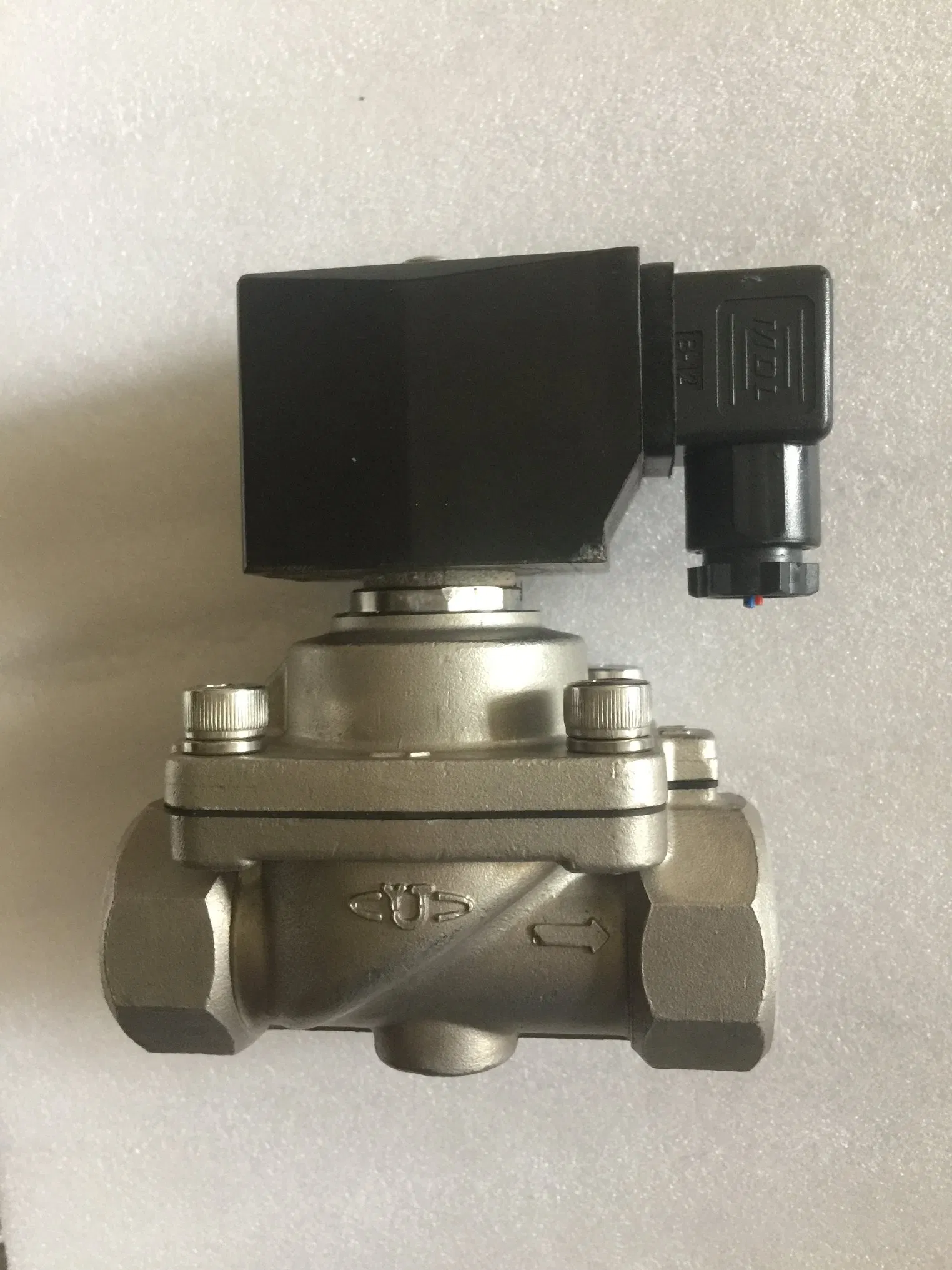

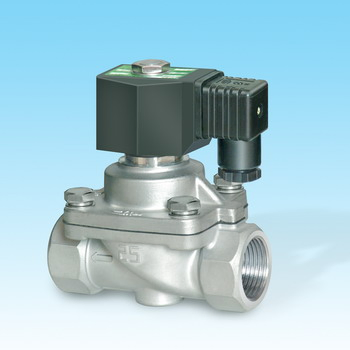

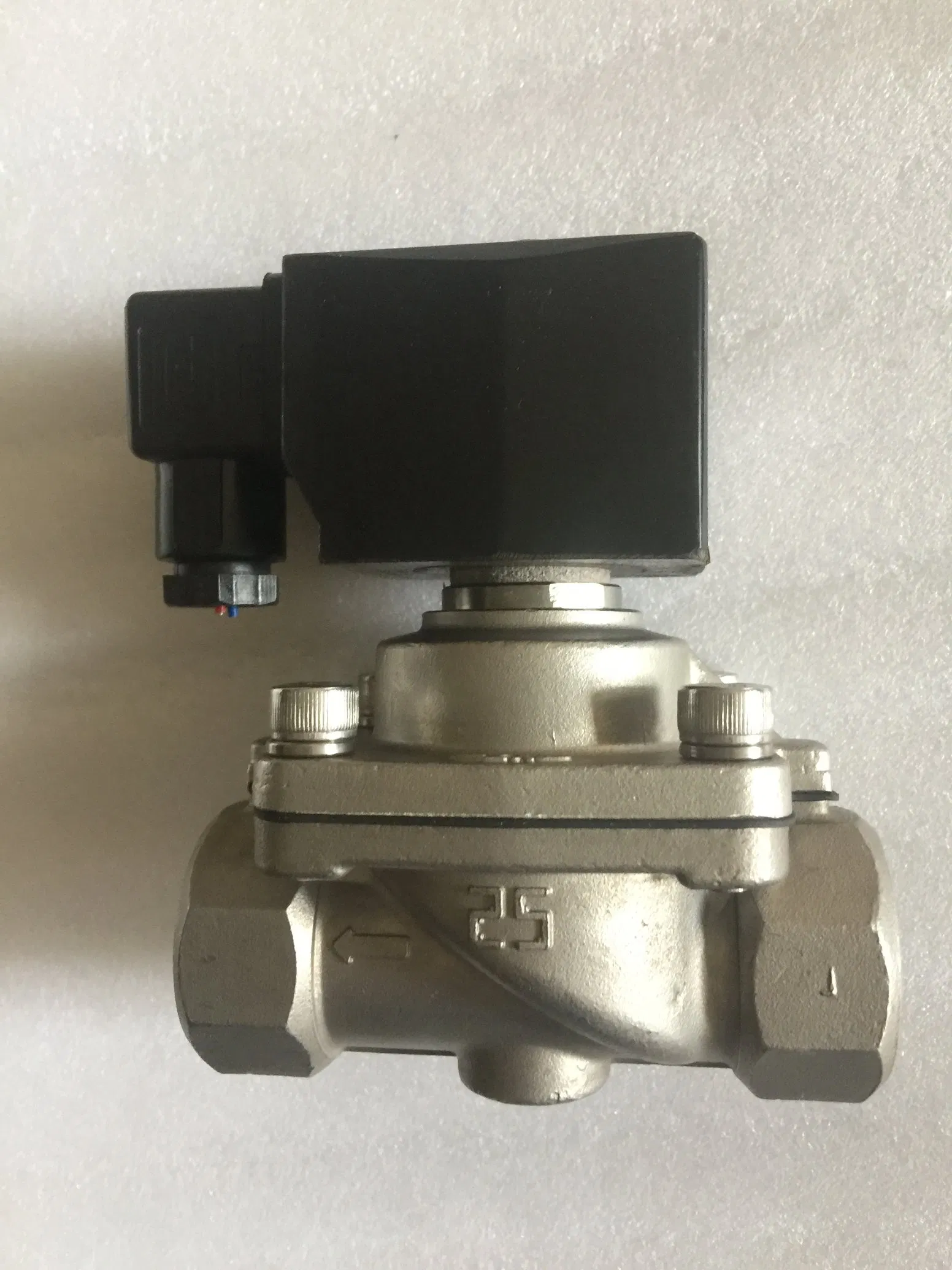

Stainless Steel, Brass
| Pipe size (G, BSP, NPT) |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1¼ |
1½ |
2 |
| Flow coefficient (KV) |
0.54 |
1.4 |
2.8 |
5 |
10 |
16 |
20 |
32 |
| Medium Pressure (PSi) |
CE (F) |
0.3~200 |
3~200 |
3~100 |
| CE |
0~57 |
0~100 |
0~57 |
| Medium Temp. (C) |
-10~60 / 0~150 |
| Suitable medium |
Oil, gas, air, water, ammonia, propane, butane |
| Power voltage (V) |
AC220, AC110 (+10% -15%) | DC24V, DC12V (±10%) |
| Power consumption |
AC6.7VA | DC11W |
| Leakage Rate (ml/min) |
0.09 |
0.15 |
0.3 |
0.45 |
| Grade of Protection |
IP65 |
Frequently Asked Questions
Q1: What materials are used for the CE(F) series valve bodies?
The valve bodies are primarily constructed from high-quality Brass and Stainless Steel, ensuring durability and corrosion resistance.
Q2: Can these solenoid valves operate at zero pressure differential?
Yes, these direct-acting solenoid valves are designed with high sensitivity and can work normally even when the working differential pressure is close to zero.
Q3: Which media are compatible with these valves?
They are suitable for a wide range of media including Air, Gas, Water, Oil, Ammonia, Propane, and Butane.
Q4: What power supply options are available?
The valves support multiple power options: AC220V, AC110V, DC24V, and DC12V to accommodate different industrial requirements.
Q5: What is the quality guarantee period for these products?
We provide an 18-month quality guarantee along with CE, RoHS, and Sil certificates for your peace of mind.
Q6: Are there options for explosion-proof functionality?
Yes, an optional explosion-proof function is available for applications requiring enhanced safety standards.
