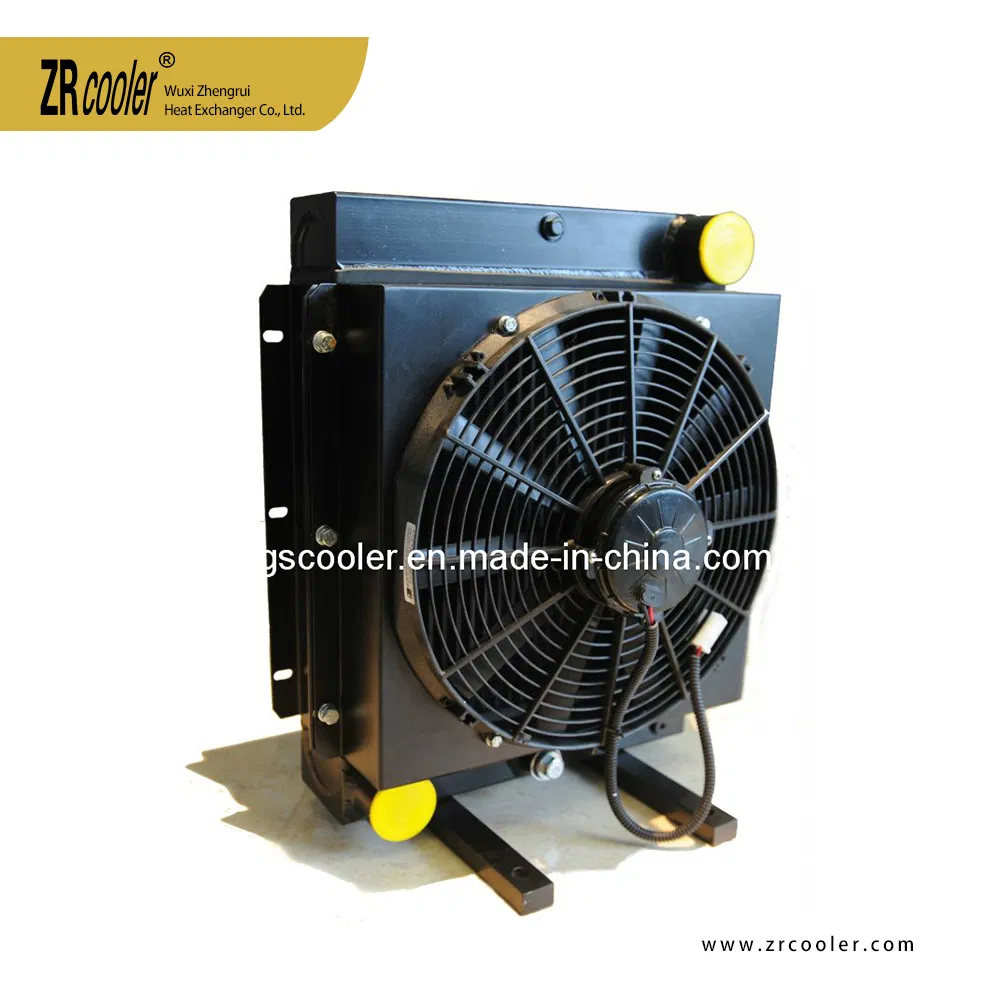

Air Cooled Hydraulic Oil Cooler (B1004)

Basic Info.

Model NO.

OCC01

Component

Radiator

Body Material

Aluminium

Cold Style

Air-cooled

Certification

ISO9001

Structure

Screw Type

Cooling Fluid Type

Glycol

Radiator Type

Cross-flow

Radiator Core Type

Bar and Plate

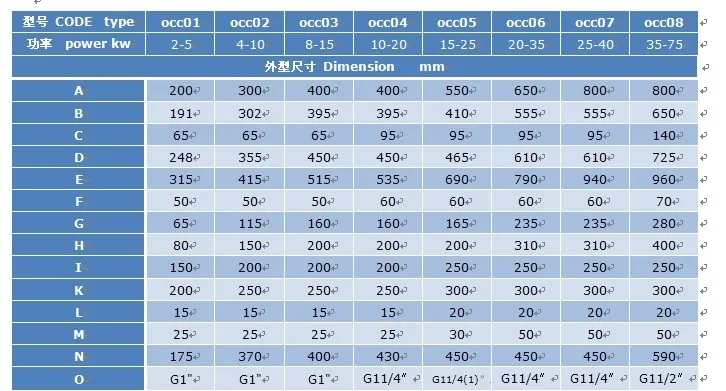

Size

248*315*65

Application

Cooler

Test

100% Test

Product Description

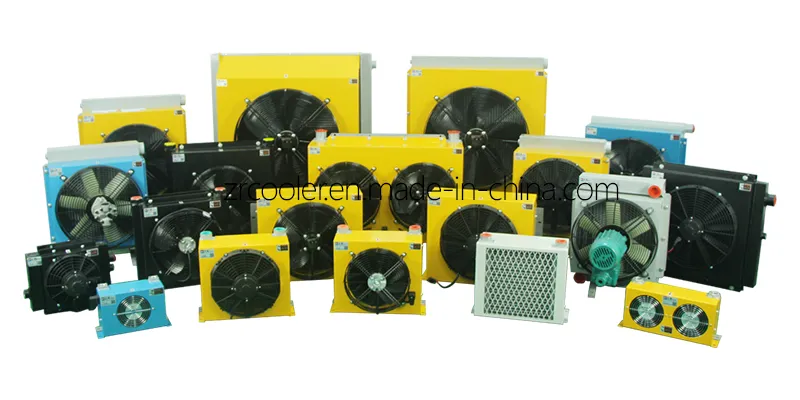

Standard oil cooler from 5kw to 260kw with fan motor options: 12V/24V DC; 220V/380V AC or hydraulic motor.

Features:

Bar & Plate Brazed Aluminum Core
Rugged, Lightweight and Compact
Welded aluminum flange
Available in 6 sizes to accommodate flow ratings of 50 to 600 gpm
220 or 380 volt AC fans
Both mobile and industrial applications
Customized units available

Ratings & Materials:

Maximum Working Pressure: 20bar
Ambient temperature: 35
Hydraulic oil maximum inlet temperature: 70
Cooler: Aluminum
Fan Guard: Plastic
Shroud: Powder Painted Iron
Fan Blade: Plastic

Component	Material Details
Core	Brazed aluminum bar and plate
Tank	5052 aluminum
Nose bar / Air fin	3003 aluminum
Connections & Brackets	Aluminum

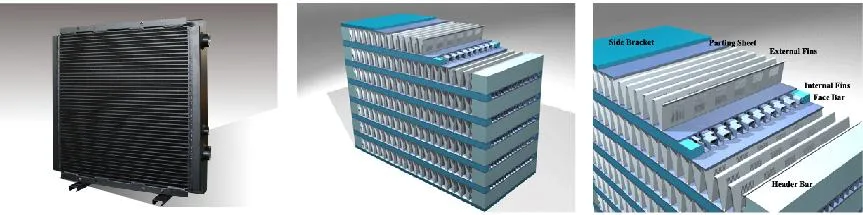

Structure: Air cooled "plate and bar" design (P-Bar design). Incorporates radiator, hydraulic oil and charge air coolers into one package.

Application: Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc.

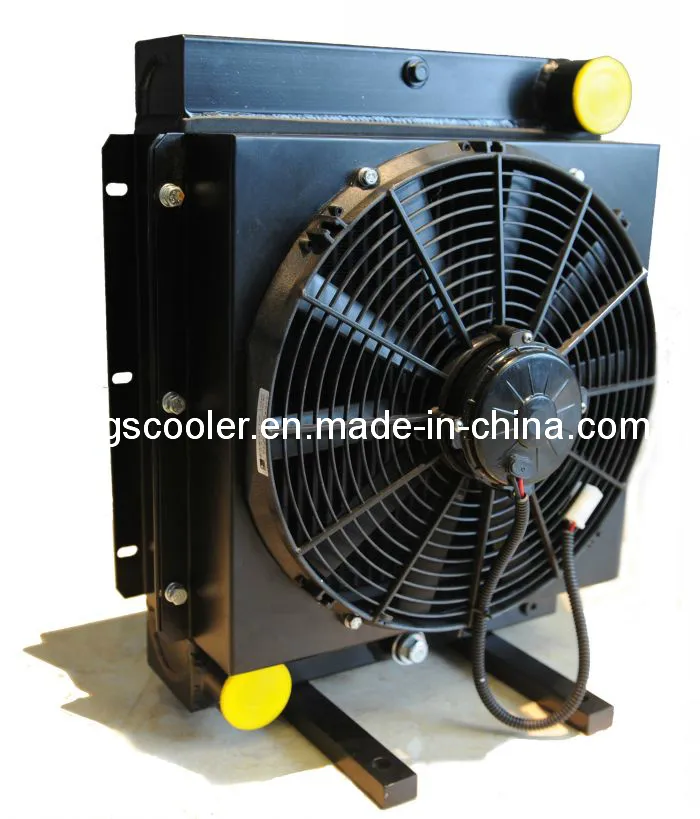

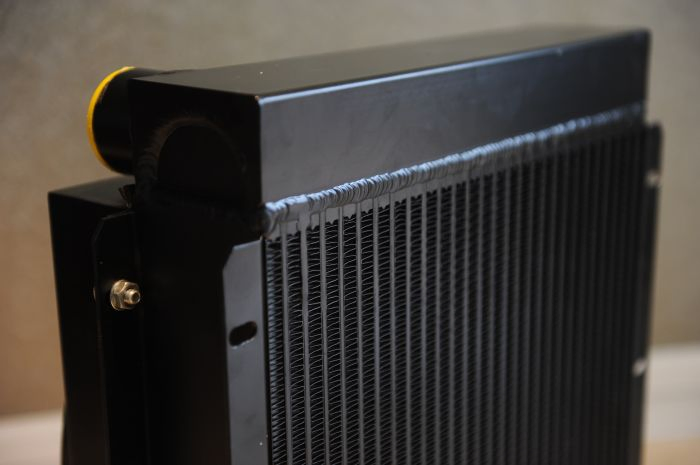

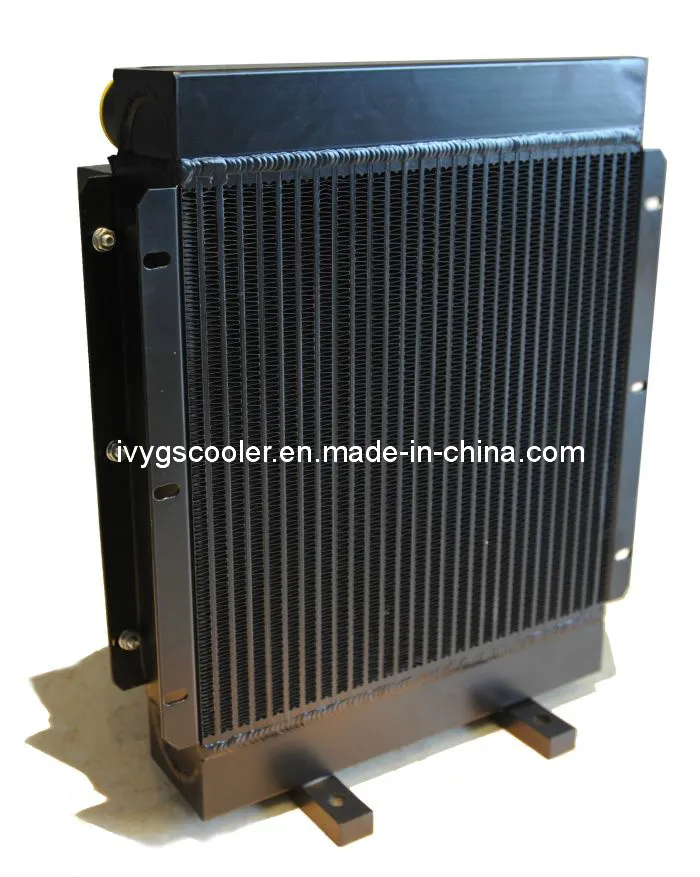

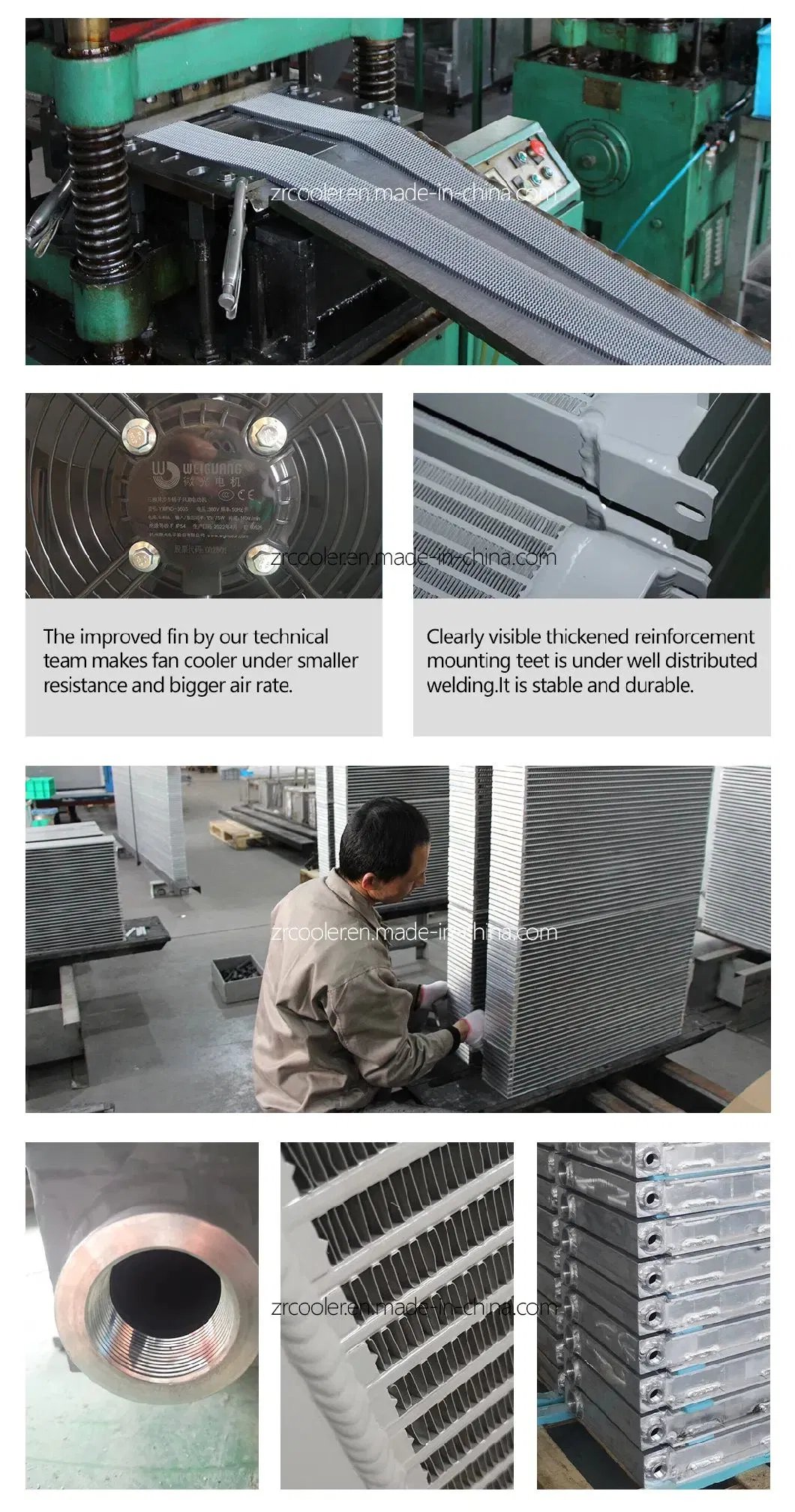

Detailed Photos

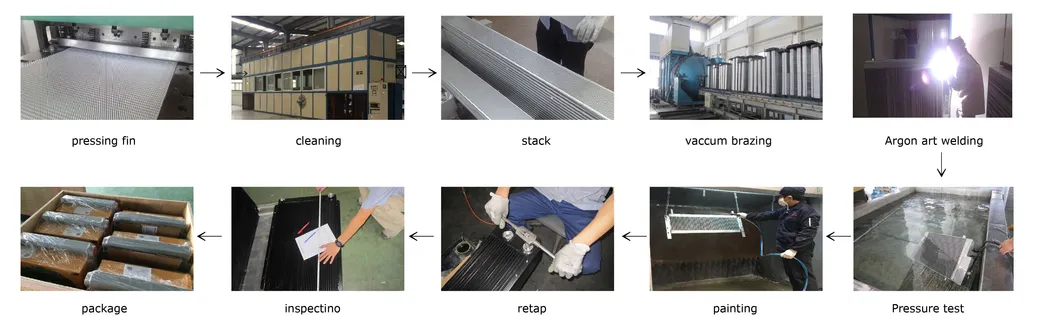

Certifications & Manufacture Process

Modules are pressure and leak tested, assembled and packaged.
Prototypes and production products can be completed in a short lead time.
Production core geometries for radiators (water-air), oil coolers (oil-air), and air coolers for engines (CAC).
P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc.

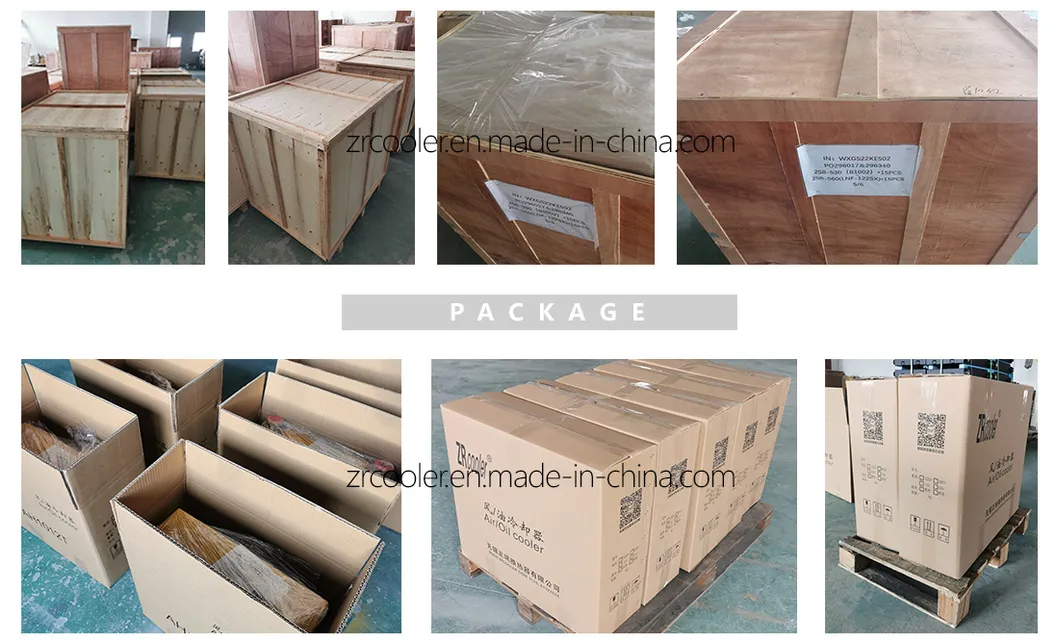

Packaging & Shipping

Installation Instructions

1. Ensure adequate air suction distance: minimum 1/2 of the fan diameter.

2. Oil ports can be used as outlet or inlet. Tighten screws with proper tools to avoid damage.

3. Applicable threads: PT (British), RC (Japan), ZG (China Standard).

4. Oil filters must be installed at the front stage of the cooler if connected in series.

5. Confirm wind direction (red arrow) matches expectations for DC or three-phase voltage fans.

Our Advantages

New product design and prototype validation.

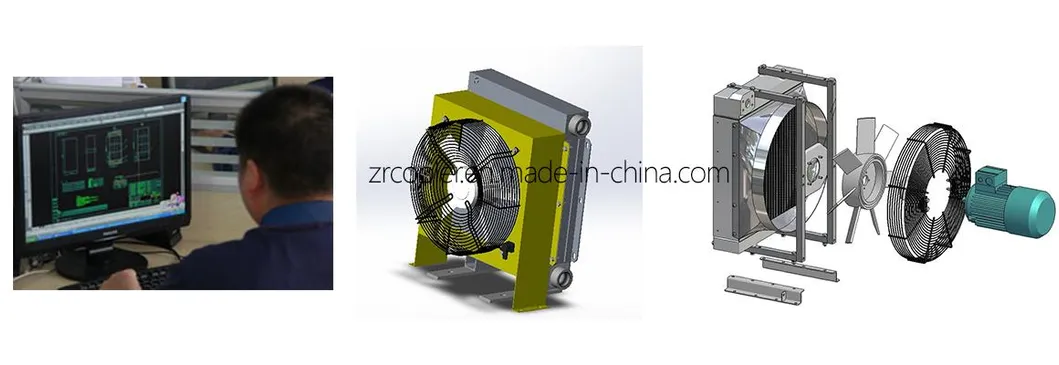

Cooler design according to thermal data and drawings.
Total cooling system solutions.
100% test before delivery.

Frequently Asked Questions

Q1. What are your terms of packing?

A: Generally, goods are packed in wooden boxes. Branded boxes can be used upon receiving authorization letters for registered patents.

Q2. What are your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Photos of products and packages will be provided before final payment.

Q3. What is your sample policy?

A: Samples can be supplied if parts are in stock, but customers are responsible for the sample cost and courier fees.

Q4. How about your delivery time?

A: Generally, it takes about one month after receiving the advance payment, depending on the specific items and order quantity.

Q5. Can you produce according to specific samples?

A: Yes, production can be based on your samples or technical drawings. We can also build necessary molds and fixtures.

Q6. Do you test all goods before delivery?

A: Yes, we perform 100% testing on all products before they are delivered.
