Product Description

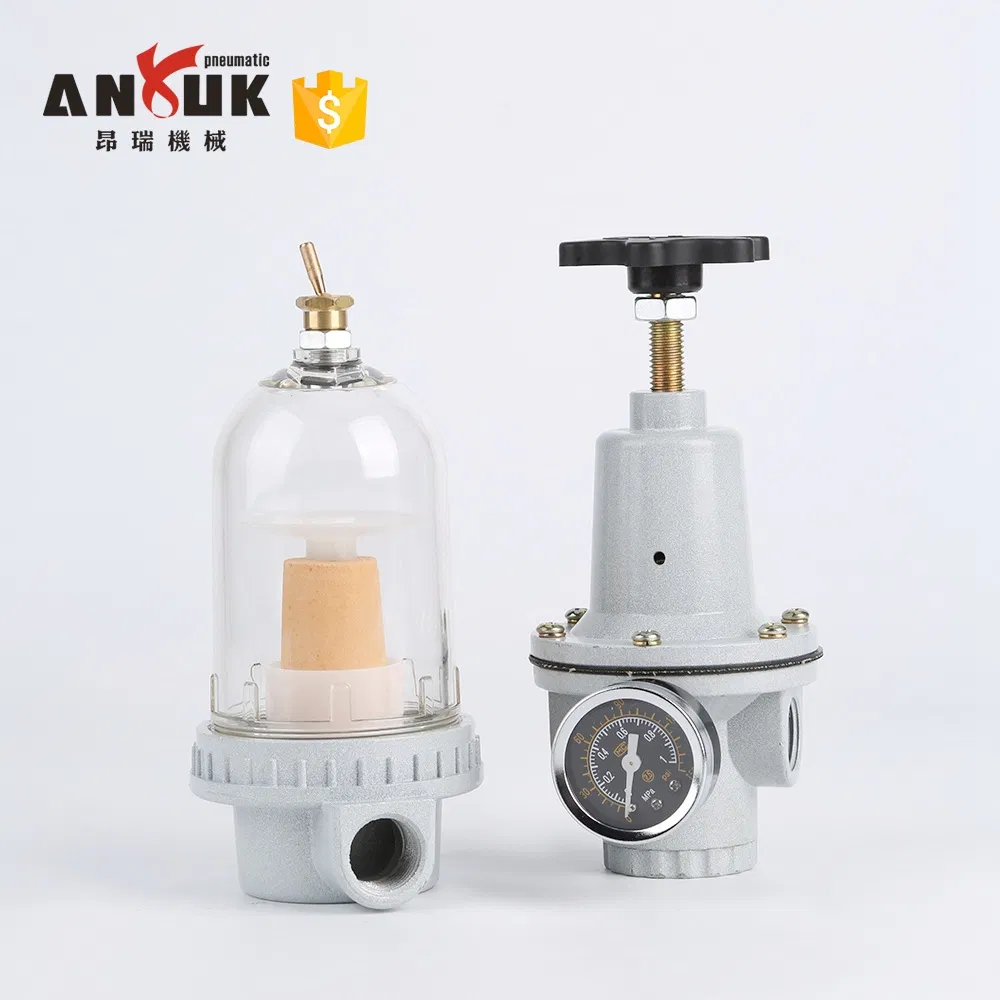

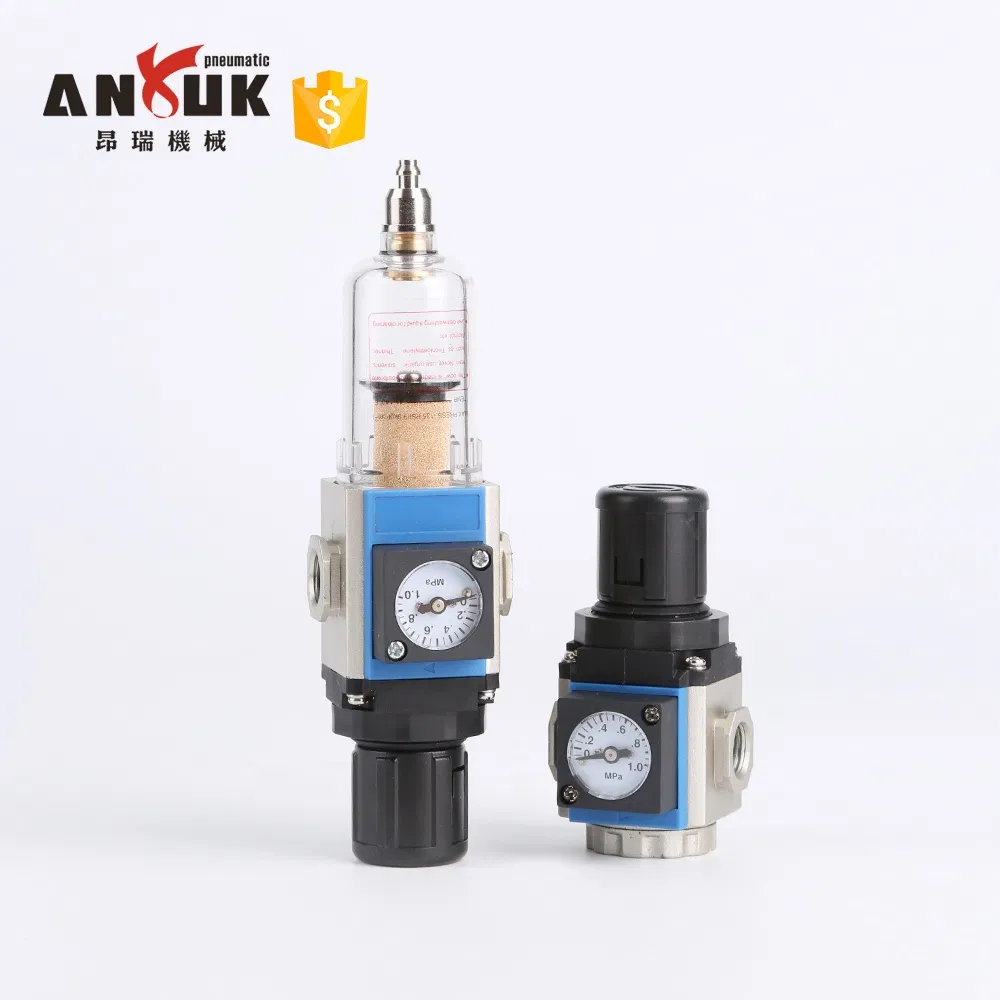

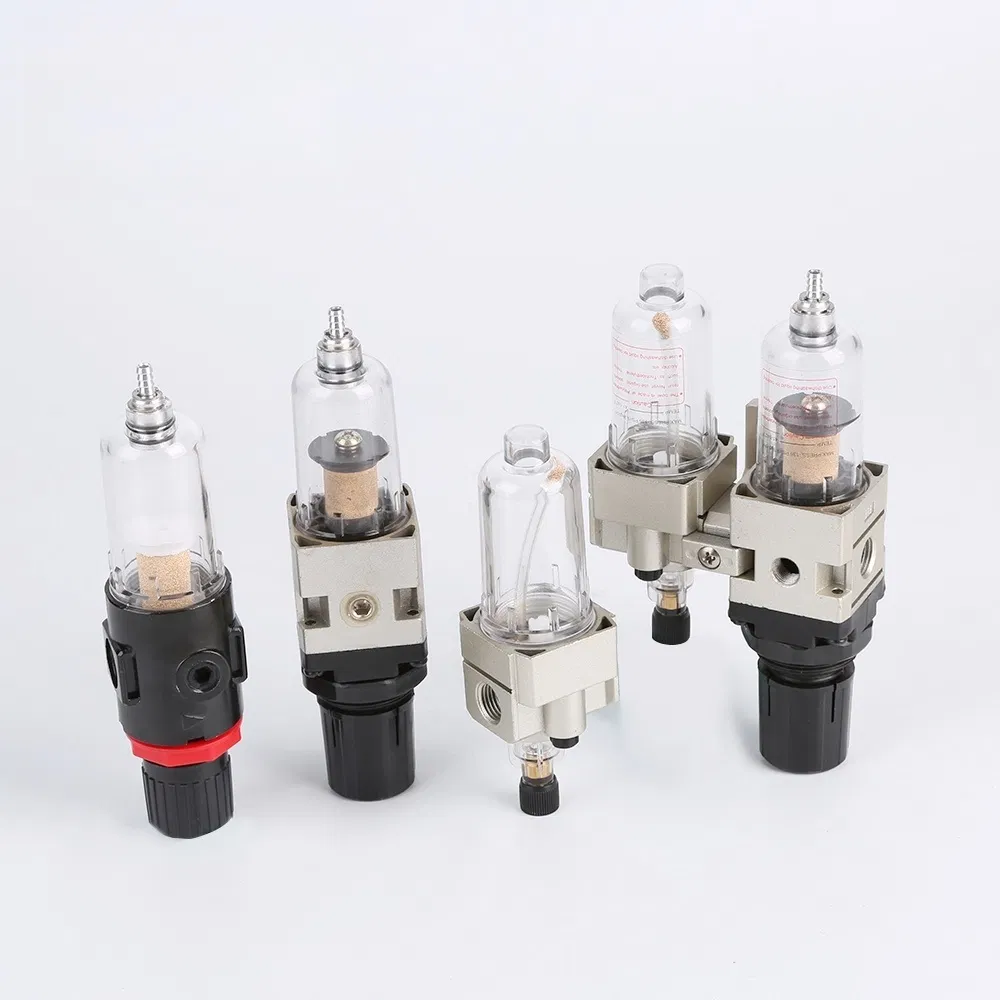

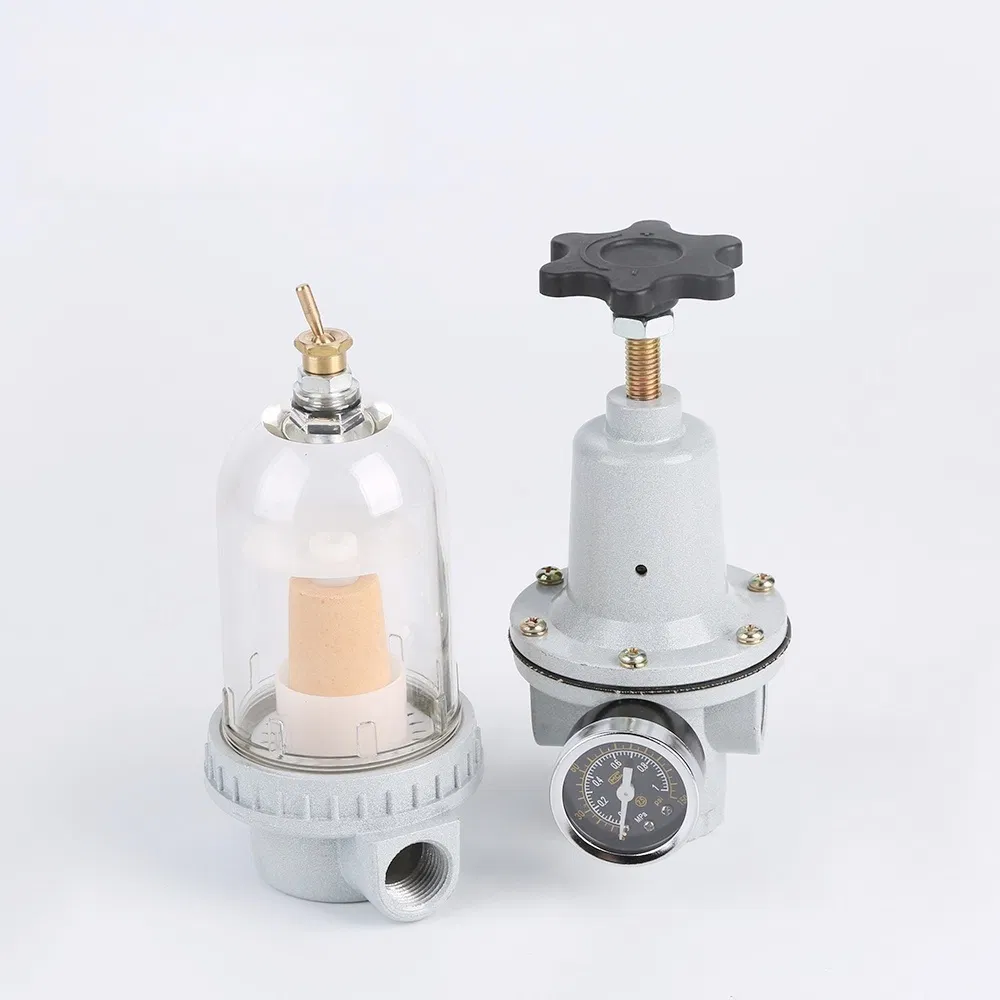

Air source products are essential components in pneumatic systems, responsible for delivering, filtering, regulating, and lubricating compressed air to ensure stable and efficient operation. Common air source devices include air filters, pressure regulators, lubricators, and combined FRL units. These components help to remove moisture and impurities, maintain consistent air pressure, and prolong the lifespan of downstream pneumatic tools and actuators. With compact design, easy maintenance, and wide compatibility, air source units are widely used in industrial automation, machinery, and manufacturing applications.
| Product Type |
Model No. |
Port Size |
Pressure Range |
Flow Rate |
Bowl Material |
Drain Type |
Mounting Type |
Filter Accuracy |
Special Features |
| Air Filter | AFR2000 | G1/4 | 0.15~0.85 MPa | 2000 L/min | Polycarbonate | Manual Drain | Bracket | 40 μm | Transparent bowl, Metal guard |

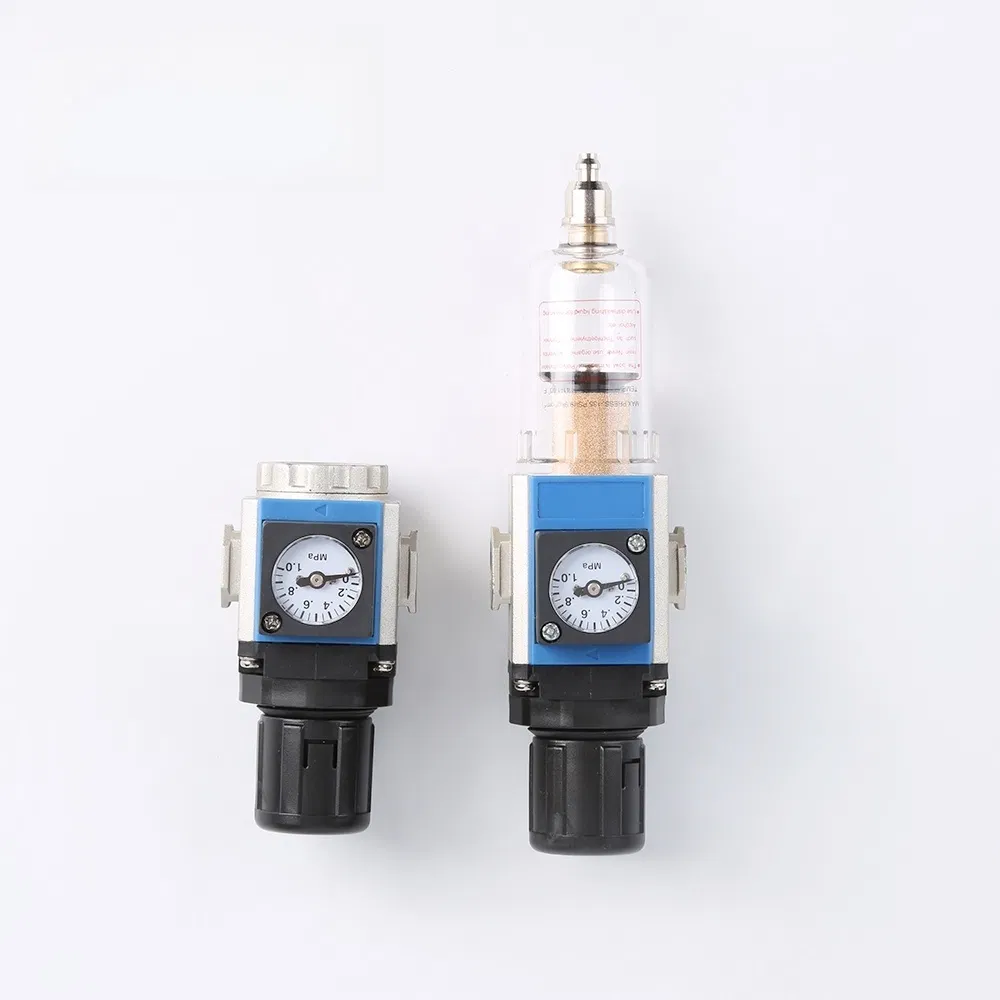

| Pressure Regulator | AR3000 | G3/8 | 0.05~0.7 MPa | 2500 L/min | - | - | Panel Mount | - | With pressure gauge |
| Lubricator | AL2000 | G1/4 | 0.15~0.85 MPa | 1500 L/min | PC with guard | Manual | Bracket | - | Oil capacity 50 ml |
| FRL Unit (2-in-1) | AFRL3000 | G3/8 | 0.05~0.85 MPa | 2800 L/min | PC + Metal Cover | Auto Drain | Wall Mount | 25 μm | Compact design |
| FRL Unit (3-in-1) | AC4000 | G1/2 | 0.05~0.85 MPa | 4000 L/min | PC + Metal Cover | Semi-auto | Universal | 5 μm | Integrated filter, regulator, oiler |
| Mini Filter Regulator | AMFR1500 | M5 | 0.1~0.7 MPa | 500 L/min | Nylon | Manual | Embedded | 40 μm | Miniature size for limited space |
❓
Frequently Asked Questions
What are the main functions of an air source treatment unit?
Air source units are designed to filter impurities, regulate air pressure to a constant level, and provide lubrication to ensure the smooth operation of pneumatic components.
What is the standard filtration accuracy for these filters?
Our standard filters typically offer a filtration accuracy of 40 μm, with high-precision options available down to 5 μm for specific industrial needs.
Can these units handle high-temperature environments?
The standard ambient temperature range for these polycarbonate-based units is 5-60℃. For higher temperature requirements, please consult our technical specifications.
What is the difference between manual and auto drain types?
Manual drain requires the operator to release collected moisture manually, while auto drain automatically discharges water when it reaches a certain level, reducing maintenance effort.
Are the bowls protected against impact?
Yes, many of our models come with a metal guard or cover to protect the polycarbonate bowl from external impacts and environmental factors.
How long is the warranty period for these products?
All our standard air source treatment products come with a 1-year warranty covering manufacturing defects under normal operating conditions.
